An output archive designed to load data from XML. More...

#include <xml.hpp>

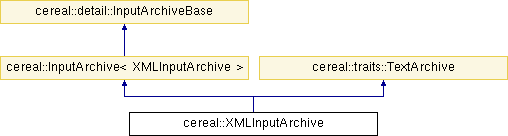

Inheritance diagram for cereal::XMLInputArchive:

Classes
struct	NodeInfo
	A struct that contains metadata about a node. More...

Public Member Functions
Common Functionality
Common use cases for directly interacting with an XMLInputArchive
	XMLInputArchive (std::istream &stream)
	Construct, reading in from the provided stream. More...

	~XMLInputArchive () CEREAL_NOEXCEPT=default

void	loadBinaryValue (void data, size_t size, const char name=nullptr)
	Loads some binary data, encoded as a base64 string, optionally specified by some name. More...

Public Member Functions inherited from cereal::InputArchive< XMLInputArchive >
	InputArchive (XMLInputArchive *const derived)
	Construct the output archive. More...

InputArchive &	operator= (InputArchive const &)=delete

XMLInputArchive &	operator() (Types &&... args)
	Serializes all passed in data. More...

void	serializeDeferments ()
	Serializes any data marked for deferment using defer. More...

std::shared_ptr< void >	getSharedPointer (std::uint32_t const id)
	Retrieves a shared pointer given a unique key for it. More...

void	registerSharedPointer (std::uint32_t const id, std::shared_ptr< void > ptr)
	Registers a shared pointer to its unique identifier. More...

std::string	getPolymorphicName (std::uint32_t const id)
	Retrieves the string for a polymorphic type given a unique key for it. More...

void	registerPolymorphicName (std::uint32_t const id, std::string const &name)
	Registers a polymorphic name string to its unique identifier. More...

XMLInputArchive &	operator& (T &&arg)
	Serializes passed in data. More...

XMLInputArchive &	operator>> (T &&arg)
	Serializes passed in data. More...

Public Member Functions inherited from cereal::detail::InputArchiveBase
	InputArchiveBase ()=default

	InputArchiveBase (InputArchiveBase &&) CEREAL_NOEXCEPT

InputArchiveBase &	operator= (InputArchiveBase &&) CEREAL_NOEXCEPT

virtual	~InputArchiveBase () CEREAL_NOEXCEPT=default

Private Attributes
std::vector< char >	itsData
	The raw data loaded. More...

rapidxml::xml_document	itsXML
	The XML document. More...

std::stack< NodeInfo >	itsNodes
	A stack of nodes read from the document. More...

Internal Functionality
Functionality designed for use by those requiring control over the inner mechanisms of the XMLInputArchive
template<class T >
	value
	Loads a type best represented as an int from the current top node. More...

void	startNode ()
	Prepares to start reading the next node. More...

void	finishNode ()
	Finishes reading the current node. More...

const char *	getNodeName () const

void	setNextName (const char *name)
	Sets the name for the next node created with startNode. More...

template<class T , traits::EnableIf< std::is_unsigned< T >::value, std::is_same< T, bool >::value > = traits::sfinae>
void	loadValue (T &value)
	Loads a bool from the current top node. More...

template<class T , traits::EnableIf< std::is_integral< T >::value, !std::is_same< T, bool >::value, sizeof(T)==sizeof(char)> = traits::sfinae>
void	loadValue (T &value)
	Loads a char (signed or unsigned) from the current top node. More...

void	loadValue (int8_t &value)
	Load an int8_t from the current top node (ensures we parse entire number) More...

void	loadValue (uint8_t &value)
	Load a uint8_t from the current top node (ensures we parse entire number) More...

template<class T , traits::EnableIf< std::is_unsigned< T >::value, !std::is_same< T, bool >::value, !std::is_same< T, char >::value, !std::is_same< T, unsigned char >::value, sizeof(T)< sizeof(long long)>=traits::sfinae > inline void loadValue(T &value) { value=static_cast< T >(std::stoul(itsNodes.top().node->value()));} template< class T, traits::EnableIf< std::is_unsigned< T >::value, !std::is_same< T, bool >::value, sizeof(T) >=sizeof(long long)> = traits::sfinae>
void	loadValue (T &value)
	Loads a type best represented as an unsigned long from the current top node. More...

	if (std::fpclassify(value) !=FP_SUBNORMAL) throw

void	loadValue (long double &value)
	Loads a type best represented as a long double from the current top node. More...

template<class CharT , class Traits , class Alloc >
void	loadValue (std::basic_string< CharT, Traits, Alloc > &str)
	Loads a string from the current node from the current top node. More...

template<class T >
void	loadSize (T &value)
	Loads the size of the current top node. More...

static size_t	getNumChildren (rapidxml::xml_node<> *node)
	Gets the number of children (usually interpreted as size) for the specified node. More...

Additional Inherited Members
Public Types inherited from cereal::InputArchive< XMLInputArchive >
using	is_loading = std::true_type
	Indicates this archive is intended for loading. More...

using	is_saving = std::false_type
	Indicates this archive is not intended for saving. More...

Detailed Description

An output archive designed to load data from XML.

This archive uses RapidXML to build an in memory XML tree of the data in the stream it is given before loading any types serialized.

As with the output XML archive, the preferred way to use this archive is in an RAII fashion, ensuring its destruction after all data has been read.

Input XML should have been produced by the XMLOutputArchive. Data can only be added to dynamically sized containers - the input archive will determine their size by looking at the number of child nodes. Data that did not originate from an XMLOutputArchive is not officially supported, but may be possible to use if properly formatted.

The XMLInputArchive does not require that nodes are loaded in the same order they were saved by XMLOutputArchive. Using name value pairs (NVPs), it is possible to load in an out of order fashion or otherwise skip/select specific nodes to load.

The default behavior of the input archive is to read sequentially starting with the first node and exploring its children. When a given NVP does not match the read in name for a node, the archive will search for that node at the current level and load it if it exists. After loading an out of order node, the archive will then proceed back to loading sequentially from its new position.

Consider this simple example where loading of some data is skipped:

// imagine the input file has someData(1-9) saved in order at the top level node
ar( someData1, someData2, someData3 );        // XML loads in the order it sees in the file
ar( cereal::make_nvp( "hello", someData6 ) ); // NVP given does not
                                              // match expected NVP name, so we search
                                              // for the given NVP and load that value
ar( someData7, someData8, someData9 );        // with no NVP given, loading resumes at its
                                              // current location, proceeding sequentially

Constructor & Destructor Documentation

◆ XMLInputArchive()

cereal::XMLInputArchive::XMLInputArchive ( std::istream & stream )

inline

Construct, reading in from the provided stream.

Reads in an entire XML document from some stream and parses it as soon as serialization starts

Parameters

stream The stream to read from. Can be a stringstream or a file.

◆ ~XMLInputArchive()

cereal::XMLInputArchive::~XMLInputArchive ( )

default

Member Function Documentation

◆ finishNode()

void cereal::XMLInputArchive::finishNode ( )

inline

Finishes reading the current node.

◆ getNodeName()

const char* cereal::XMLInputArchive::getNodeName ( ) const

inline

Retrieves the current node name will return nullptr if the node does not have a name

◆ getNumChildren()

static size_t cereal::XMLInputArchive::getNumChildren ( rapidxml::xml_node<> * node )

inlinestaticprotected

Gets the number of children (usually interpreted as size) for the specified node.

◆ if()

cereal::XMLInputArchive::if ( std::fpclassify(value) ! = FP_SUBNORMAL )

◆ loadBinaryValue()

void cereal::XMLInputArchive::loadBinaryValue	(	void *	data,
		size_t	size,
		const char *	name = `nullptr`
	)

inline

Loads some binary data, encoded as a base64 string, optionally specified by some name.

This will automatically start and finish a node to load the data, and can be called directly by users.

Note that this follows the same ordering rules specified in the class description in regards to loading in/out of order

◆ loadSize()

template<class T >

void cereal::XMLInputArchive::loadSize ( T & value )

inline

Loads the size of the current top node.

◆ loadValue() [1/7]

void cereal::XMLInputArchive::loadValue ( int8_t & value )

inline

Load an int8_t from the current top node (ensures we parse entire number)

◆ loadValue() [2/7]

void cereal::XMLInputArchive::loadValue ( long double & value )

inline

Loads a type best represented as a long double from the current top node.

◆ loadValue() [3/7]

template<class CharT , class Traits , class Alloc >

void cereal::XMLInputArchive::loadValue ( std::basic_string< CharT, Traits, Alloc > & str )

inline

Loads a string from the current node from the current top node.

◆ loadValue() [4/7]

template<class T , traits::EnableIf< std::is_unsigned< T >::value, std::is_same< T, bool >::value > = traits::sfinae>

void cereal::XMLInputArchive::loadValue ( T & value )

inline

Loads a bool from the current top node.

◆ loadValue() [5/7]

template<class T , traits::EnableIf< std::is_integral< T >::value, !std::is_same< T, bool >::value, sizeof(T)==sizeof(char)> = traits::sfinae>

void cereal::XMLInputArchive::loadValue ( T & value )

inline

Loads a char (signed or unsigned) from the current top node.

◆ loadValue() [6/7]

template<class T , traits::EnableIf< std::is_unsigned< T >::value, !std::is_same< T, bool >::value, !std::is_same< T, char >::value, !std::is_same< T, unsigned char >::value, sizeof(T)< sizeof(long long)>=traits::sfinae > inline void loadValue(T &value) { value=static_cast< T >(std::stoul(itsNodes.top().node->value()));} template< class T, traits::EnableIf< std::is_unsigned< T >::value, !std::is_same< T, bool >::value, sizeof(T) >=sizeof(long long)> = traits::sfinae>

void cereal::XMLInputArchive::loadValue ( T & value )

inline

Loads a type best represented as an unsigned long from the current top node.

◆ loadValue() [7/7]

void cereal::XMLInputArchive::loadValue ( uint8_t & value )

inline

Load a uint8_t from the current top node (ensures we parse entire number)

◆ setNextName()

void cereal::XMLInputArchive::setNextName ( const char * name )

inline

Sets the name for the next node created with startNode.

◆ startNode()

void cereal::XMLInputArchive::startNode ( )

inline

Prepares to start reading the next node.

This places the next node to be parsed onto the nodes stack.

By default our strategy is to start with the document root node and then recursively iterate through all children in the order they show up in the document. We don't need to know NVPs do to this; we'll just blindly load in the order things appear in.

We check to see if the specified NVP matches what the next automatically loaded node is. If they match, we just continue as normal, going in order. If they don't match, we attempt to find a node named after the NVP that is being loaded. If that NVP does not exist, we throw an exception.

Member Data Documentation

◆ itsData

std::vector<char> cereal::XMLInputArchive::itsData

private

The raw data loaded.

◆ itsNodes

std::stack<NodeInfo> cereal::XMLInputArchive::itsNodes

private

A stack of nodes read from the document.

◆ itsXML

rapidxml::xml_document cereal::XMLInputArchive::itsXML

private

The XML document.

◆ value

template<class T >

cereal::XMLInputArchive::value

Loads a type best represented as an int from the current top node.

The documentation for this class was generated from the following file:

/home/runner/work/NDDEM/NDDEM/src/Dem/cereal/archives/xml.hpp
