An output archive designed to save data to XML. More...

#include <xml.hpp>

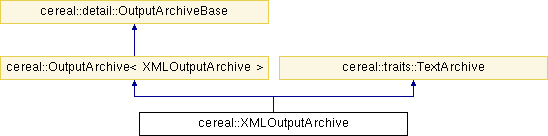

Inheritance diagram for cereal::XMLOutputArchive:

Classes
struct	NodeInfo
	A struct that contains metadata about a node. More...

class	Options
	A class containing various advanced options for the XML archive. More...

Public Member Functions
Common Functionality
Common use cases for directly interacting with an XMLOutputArchive
	XMLOutputArchive (std::ostream &stream, Options const &options=Options::Default())
	Construct, outputting to the provided stream upon destruction. More...

	~XMLOutputArchive () CEREAL_NOEXCEPT
	Destructor, flushes the XML. More...

void	saveBinaryValue (const void data, size_t size, const char name=nullptr)
	Saves some binary data, encoded as a base64 string, with an optional name. More...

Internal Functionality
Functionality designed for use by those requiring control over the inner mechanisms of the XMLOutputArchive
void	startNode ()
	Creates a new node that is a child of the node at the top of the stack. More...

void	finishNode ()
	Designates the most recently added node as finished. More...

void	setNextName (const char *name)
	Sets the name for the next node created with startNode. More...

template<class T >
void	saveValue (T const &value)
	Saves some data, encoded as a string, into the current top level node. More...

void	saveValue (uint8_t const &value)
	Overload for uint8_t prevents them from being serialized as characters. More...

void	saveValue (int8_t const &value)
	Overload for int8_t prevents them from being serialized as characters. More...

template<class T >
void	insertType ()
	Causes the type to be appended as an attribute to the most recently made node if output type is set to true. More...

void	appendAttribute (const char name, const char value)
	Appends an attribute to the current top level node. More...

bool	hasSizeAttributes () const

Public Member Functions inherited from cereal::OutputArchive< XMLOutputArchive >
	OutputArchive (XMLOutputArchive *const derived)
	Construct the output archive. More...

OutputArchive &	operator= (OutputArchive const &)=delete

XMLOutputArchive &	operator() (Types &&... args)
	Serializes all passed in data. More...

void	serializeDeferments ()
	Serializes any data marked for deferment using defer. More...

std::uint32_t	registerSharedPointer (const std::shared_ptr< const void > &sharedPointer)
	Registers a shared pointer with the archive. More...

std::uint32_t	registerPolymorphicType (char const *name)
	Registers a polymorphic type name with the archive. More...

XMLOutputArchive &	operator& (T &&arg)
	Serializes passed in data. More...

XMLOutputArchive &	operator<< (T &&arg)
	Serializes passed in data. More...

Public Member Functions inherited from cereal::detail::OutputArchiveBase
	OutputArchiveBase ()=default

	OutputArchiveBase (OutputArchiveBase &&) CEREAL_NOEXCEPT

OutputArchiveBase &	operator= (OutputArchiveBase &&) CEREAL_NOEXCEPT

virtual	~OutputArchiveBase () CEREAL_NOEXCEPT=default

Private Attributes
std::ostream &	itsStream
	The output stream. More...

rapidxml::xml_document	itsXML
	The XML document. More...

std::stack< NodeInfo >	itsNodes
	A stack of nodes added to the document. More...

std::ostringstream	itsOS
	Used to format strings internally. More...

bool	itsOutputType
	Controls whether type information is printed. More...

bool	itsIndent
	Controls whether indenting is used. More...

bool	itsSizeAttributes
	Controls whether lists have a size attribute. More...

Additional Inherited Members
Public Types inherited from cereal::OutputArchive< XMLOutputArchive >
using	is_loading = std::false_type
	Indicates this archive is not intended for loading. More...

using	is_saving = std::true_type
	Indicates this archive is intended for saving. More...

Detailed Description

An output archive designed to save data to XML.

This archive uses RapidXML to build an in memory XML tree of the data it serializes before outputting it to its stream upon destruction. This archive should be used in an RAII fashion, letting the automatic destruction of the object cause the flush to its stream.

XML archives provides a human readable output but at decreased performance (both in time and space) compared to binary archives.

XML benefits greatly from name-value pairs, which if present, will name the nodes in the output. If these are not present, each level of the output tree will be given an automatically generated delimited name.

The precision of the output archive controls the number of decimals output for floating point numbers and should be sufficiently large (i.e. at least 20) if there is a desire to have binary equality between the numbers output and those read in. In general you should expect a loss of precision when going from floating point to text and back.

XML archives can optionally print the type of everything they serialize, which adds an attribute to each node.

XML archives do not output the size information for any dynamically sized structure and instead infer it from the number of children for a node. This means that data can be hand edited for dynamic sized structures and will still be readable. This is accomplished through the cereal::SizeTag object, which will also add an attribute to its parent field.

Constructor & Destructor Documentation

◆ XMLOutputArchive()

cereal::XMLOutputArchive::XMLOutputArchive	(	std::ostream &	stream,
		Options const &	options = `Options::Default()`
	)

inline

Construct, outputting to the provided stream upon destruction.

Parameters

stream	The stream to output to. Note that XML is only guaranteed to flush its output to the stream upon destruction.
options	The XML specific options to use. See the Options struct for the values of default parameters

◆ ~XMLOutputArchive()

cereal::XMLOutputArchive::~XMLOutputArchive ( )

inline

Destructor, flushes the XML.

Member Function Documentation

◆ appendAttribute()

void cereal::XMLOutputArchive::appendAttribute	(	const char *	name,
		const char *	value
	)

inline

Appends an attribute to the current top level node.

◆ finishNode()

void cereal::XMLOutputArchive::finishNode ( )

inline

Designates the most recently added node as finished.

◆ hasSizeAttributes()

bool cereal::XMLOutputArchive::hasSizeAttributes ( ) const

inline

◆ insertType()

template<class T >

void cereal::XMLOutputArchive::insertType ( )

inline

Causes the type to be appended as an attribute to the most recently made node if output type is set to true.

◆ saveBinaryValue()

void cereal::XMLOutputArchive::saveBinaryValue	(	const void *	data,
		size_t	size,
		const char *	name = `nullptr`
	)

inline

Saves some binary data, encoded as a base64 string, with an optional name.

This can be called directly by users and it will automatically create a child node for the current XML node, populate it with a base64 encoded string, and optionally name it. The node will be finished after it has been populated.

◆ saveValue() [1/3]

void cereal::XMLOutputArchive::saveValue ( int8_t const & value )

inline

Overload for int8_t prevents them from being serialized as characters.

◆ saveValue() [2/3]

template<class T >

void cereal::XMLOutputArchive::saveValue ( T const & value )

inline

Saves some data, encoded as a string, into the current top level node.

The data will be be named with the most recent name if one exists, otherwise it will be given some default delimited value that depends upon the parent node

◆ saveValue() [3/3]

void cereal::XMLOutputArchive::saveValue ( uint8_t const & value )

inline

Overload for uint8_t prevents them from being serialized as characters.

◆ setNextName()

void cereal::XMLOutputArchive::setNextName ( const char * name )

inline

Sets the name for the next node created with startNode.

◆ startNode()

void cereal::XMLOutputArchive::startNode ( )

inline

Creates a new node that is a child of the node at the top of the stack.

Nodes will be given a name that has either been pre-set by a name value pair, or generated based upon a counter unique to the parent node. If you want to give a node a specific name, use setNextName prior to calling startNode.

The node will then be pushed onto the node stack.

Member Data Documentation

◆ itsIndent

bool cereal::XMLOutputArchive::itsIndent

private

Controls whether indenting is used.

◆ itsNodes

std::stack<NodeInfo> cereal::XMLOutputArchive::itsNodes

private

A stack of nodes added to the document.

◆ itsOS

std::ostringstream cereal::XMLOutputArchive::itsOS

private

Used to format strings internally.

◆ itsOutputType

bool cereal::XMLOutputArchive::itsOutputType

private

Controls whether type information is printed.

◆ itsSizeAttributes

bool cereal::XMLOutputArchive::itsSizeAttributes

private

Controls whether lists have a size attribute.

◆ itsStream

std::ostream& cereal::XMLOutputArchive::itsStream

private

The output stream.

◆ itsXML

rapidxml::xml_document cereal::XMLOutputArchive::itsXML

private

The XML document.

The documentation for this class was generated from the following file:

/home/runner/work/NDDEM/NDDEM/src/Dem/cereal/archives/xml.hpp
