Eigen::VectorBlock< VectorType, Size > Class Template Reference

Expression of a fixed-size or dynamic-size sub-vector. More...

#include <VectorBlock.h>

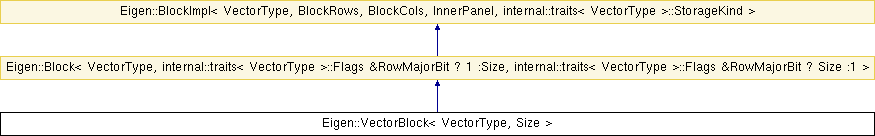

Inheritance diagram for Eigen::VectorBlock< VectorType, Size >:

Public Member Functions
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	VectorBlock (VectorType &vector, Index start, Index size)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	VectorBlock (VectorType &vector, Index start)
Public Member Functions inherited from Eigen::Block< VectorType, internal::traits< VectorType >::Flags &RowMajorBit ? 1 :Size, internal::traits< VectorType >::Flags &RowMajorBit ? Size :1 >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Block (VectorType &xpr, Index i)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Block (VectorType &xpr, Index startRow, Index startCol)
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE	Block (VectorType &xpr, Index startRow, Index startCol, Index blockRows, Index blockCols)

Private Types
enum	{ IsColVector = !(internal::traits<VectorType>::Flags & RowMajorBit) }
typedef Block< VectorType, internal::traits< VectorType >::Flags &RowMajorBit ? 1 :Size, internal::traits< VectorType >::Flags &RowMajorBit ? Size :1 >	Base

Additional Inherited Members
Public Types inherited from Eigen::Block< VectorType, internal::traits< VectorType >::Flags &RowMajorBit ? 1 :Size, internal::traits< VectorType >::Flags &RowMajorBit ? Size :1 >
typedef Impl	Base
typedef internal::remove_all< VectorType >::type	NestedExpression

Detailed Description

template<typename VectorType, int Size>
class Eigen::VectorBlock< VectorType, Size >

Expression of a fixed-size or dynamic-size sub-vector.

Template Parameters

VectorType	the type of the object in which we are taking a sub-vector
Size	size of the sub-vector we are taking at compile time (optional)

This class represents an expression of either a fixed-size or dynamic-size sub-vector. It is the return type of DenseBase::segment(Index,Index) and DenseBase::segment<int>(Index) and most of the time this is the only way it is used.

However, if you want to directly manipulate sub-vector expressions, for instance if you want to write a function returning such an expression, you will need to use this class.

Here is an example illustrating the dynamic case:

Output:

Note

Even though this expression has dynamic size, in the case where VectorType has fixed size, this expression inherits a fixed maximal size which means that evaluating it does not cause a dynamic memory allocation.

Here is an example illustrating the fixed-size case:

Output:

See also

class Block, DenseBase::segment(Index,Index,Index,Index), DenseBase::segment(Index,Index)

Member Typedef Documentation

Base

template<typename VectorType , int Size>

typedef Block<VectorType, internal::traits<VectorType>::Flags & RowMajorBit ? 1 : Size, internal::traits<VectorType>::Flags & RowMajorBit ? Size : 1> Eigen::VectorBlock< VectorType, Size >::Base

private

Member Enumeration Documentation

anonymous enum

template<typename VectorType , int Size>

anonymous enum

private

Enumerator
IsColVector

Constructor & Destructor Documentation

VectorBlock() [1/2]

template<typename VectorType , int Size>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::VectorBlock< VectorType, Size >::VectorBlock ( VectorType &  vector, Index  start, Index  size  )

inline

Dynamic-size constructor

VectorBlock() [2/2]

template<typename VectorType , int Size>

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::VectorBlock< VectorType, Size >::VectorBlock ( VectorType &  vector, Index  start  )

inline

Fixed-size constructor

---

The documentation for this class was generated from the following files:

• /home/runner/work/NDDEM/NDDEM/src/CoarseGraining/Eigen/src/Core/util/ForwardDeclarations.h
• /home/runner/work/NDDEM/NDDEM/src/CoarseGraining/Eigen/src/Core/VectorBlock.h
