A sparse direct LU factorization and solver based on the SuperLU library. More...

#include <SuperLUSupport.h>

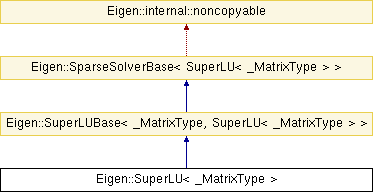

Inheritance diagram for Eigen::SuperLU< _MatrixType >:

Public Types
typedef SuperLUBase< _MatrixType, SuperLU >	Base

typedef _MatrixType	MatrixType

typedef Base::Scalar	Scalar

typedef Base::RealScalar	RealScalar

typedef Base::StorageIndex	StorageIndex

typedef Base::IntRowVectorType	IntRowVectorType

typedef Base::IntColVectorType	IntColVectorType

typedef Base::PermutationMap	PermutationMap

typedef Base::LUMatrixType	LUMatrixType

typedef TriangularView< LUMatrixType, Lower\|UnitDiag >	LMatrixType

typedef TriangularView< LUMatrixType, Upper >	UMatrixType

Public Types inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
enum

typedef _MatrixType	MatrixType

typedef MatrixType::Scalar	Scalar

typedef MatrixType::RealScalar	RealScalar

typedef MatrixType::StorageIndex	StorageIndex

typedef Matrix< Scalar, Dynamic, 1 >	Vector

typedef Matrix< int, 1, MatrixType::ColsAtCompileTime >	IntRowVectorType

typedef Matrix< int, MatrixType::RowsAtCompileTime, 1 >	IntColVectorType

typedef Map< PermutationMatrix< Dynamic, Dynamic, int > >	PermutationMap

typedef SparseMatrix< Scalar >	LUMatrixType

Public Member Functions
	SuperLU ()

	SuperLU (const MatrixType &matrix)

	~SuperLU ()

void	analyzePattern (const MatrixType &matrix)

void	factorize (const MatrixType &matrix)

template<typename Rhs , typename Dest >
void	_solve_impl (const MatrixBase< Rhs > &b, MatrixBase< Dest > &dest) const

const LMatrixType &	matrixL () const

const UMatrixType &	matrixU () const

const IntColVectorType &	permutationP () const

const IntRowVectorType &	permutationQ () const

Scalar	determinant () const

Public Member Functions inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
	SuperLUBase ()

	~SuperLUBase ()

Index	rows () const

Index	cols () const

superlu_options_t &	options ()

ComputationInfo	info () const
	Reports whether previous computation was successful. More...

void	compute (const MatrixType &matrix)

void	analyzePattern (const MatrixType &)

void	dumpMemory (Stream &)

Public Member Functions inherited from Eigen::SparseSolverBase< Derived >
	SparseSolverBase ()

	~SparseSolverBase ()

Derived &	derived ()

const Derived &	derived () const

template<typename Rhs >
const Solve< Derived, Rhs >	solve (const MatrixBase< Rhs > &b) const

template<typename Rhs >
const Solve< Derived, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const

template<typename Rhs , typename Dest >
void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const

Protected Member Functions
void	init ()

Protected Member Functions inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
void	initFactorization (const MatrixType &a)

void	init ()

void	extractData () const

void	clearFactors ()

SuperLU< _MatrixType > &	derived ()

const SuperLU< _MatrixType > &	derived () const

Protected Attributes
LUMatrixType	m_matrix

superlu_options_t	m_sluOptions

SluMatrix	m_sluA

SluMatrix	m_sluB

SluMatrix	m_sluX

IntColVectorType	m_p

IntRowVectorType	m_q

std::vector< int >	m_sluEtree

char	m_sluEqued

Matrix< RealScalar, Dynamic, 1 >	m_sluRscale

Matrix< RealScalar, Dynamic, 1 >	m_sluCscale

SuperMatrix	m_sluL

SuperMatrix	m_sluU

SuperLUStat_t	m_sluStat

Matrix< RealScalar, Dynamic, 1 >	m_sluFerr

Matrix< RealScalar, Dynamic, 1 >	m_sluBerr

LUMatrixType	m_l

LUMatrixType	m_u

int	m_analysisIsOk

int	m_factorizationIsOk

bool	m_extractedDataAreDirty

bool	m_isInitialized

ComputationInfo	m_info

Protected Attributes inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
LUMatrixType	m_l

LUMatrixType	m_u

IntColVectorType	m_p

IntRowVectorType	m_q

LUMatrixType	m_matrix

SluMatrix	m_sluA

SuperMatrix	m_sluL

SuperMatrix	m_sluU

SluMatrix	m_sluB

SluMatrix	m_sluX

SuperLUStat_t	m_sluStat

superlu_options_t	m_sluOptions

std::vector< int >	m_sluEtree

Matrix< RealScalar, Dynamic, 1 >	m_sluRscale

Matrix< RealScalar, Dynamic, 1 >	m_sluCscale

Matrix< RealScalar, Dynamic, 1 >	m_sluFerr

Matrix< RealScalar, Dynamic, 1 >	m_sluBerr

char	m_sluEqued

ComputationInfo	m_info

int	m_factorizationIsOk

int	m_analysisIsOk

bool	m_extractedDataAreDirty

bool	m_isInitialized

Protected Attributes inherited from Eigen::SparseSolverBase< Derived >
bool	m_isInitialized

Private Member Functions
	SuperLU (SuperLU &)

Additional Inherited Members
Protected Types inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
typedef SparseSolverBase< SuperLU< _MatrixType > >	Base

Detailed Description

template<typename _MatrixType>
class Eigen::SuperLU< _MatrixType >

A sparse direct LU factorization and solver based on the SuperLU library.

This class allows to solve for A.X = B sparse linear problems via a direct LU factorization using the SuperLU library. The sparse matrix A must be squared and invertible. The vectors or matrices X and B can be either dense or sparse.

Template Parameters

_MatrixType the type of the sparse matrix A, it must be a SparseMatrix<>

Warning: This class is only for the 4.x versions of SuperLU. The 3.x and 5.x versions are not supported.

\implsparsesolverconcept

See also: TutorialSparseSolverConcept, class SparseLU

Member Typedef Documentation

◆ Base

template<typename _MatrixType >

typedef SuperLUBase<_MatrixType,SuperLU> Eigen::SuperLU< _MatrixType >::Base

◆ IntColVectorType

template<typename _MatrixType >

typedef Base::IntColVectorType Eigen::SuperLU< _MatrixType >::IntColVectorType

◆ IntRowVectorType

template<typename _MatrixType >

typedef Base::IntRowVectorType Eigen::SuperLU< _MatrixType >::IntRowVectorType

◆ LMatrixType

template<typename _MatrixType >

typedef TriangularView<LUMatrixType, Lower|UnitDiag> Eigen::SuperLU< _MatrixType >::LMatrixType

◆ LUMatrixType

template<typename _MatrixType >

typedef Base::LUMatrixType Eigen::SuperLU< _MatrixType >::LUMatrixType

◆ MatrixType

template<typename _MatrixType >

typedef _MatrixType Eigen::SuperLU< _MatrixType >::MatrixType

◆ PermutationMap

template<typename _MatrixType >

typedef Base::PermutationMap Eigen::SuperLU< _MatrixType >::PermutationMap

◆ RealScalar

template<typename _MatrixType >

typedef Base::RealScalar Eigen::SuperLU< _MatrixType >::RealScalar

◆ Scalar

template<typename _MatrixType >

typedef Base::Scalar Eigen::SuperLU< _MatrixType >::Scalar

◆ StorageIndex

template<typename _MatrixType >

typedef Base::StorageIndex Eigen::SuperLU< _MatrixType >::StorageIndex

◆ UMatrixType

template<typename _MatrixType >

typedef TriangularView<LUMatrixType, Upper> Eigen::SuperLU< _MatrixType >::UMatrixType

Constructor & Destructor Documentation

◆ SuperLU() [1/3]

template<typename _MatrixType >

Eigen::SuperLU< _MatrixType >::SuperLU ( )

inline

◆ SuperLU() [2/3]

template<typename _MatrixType >

Eigen::SuperLU< _MatrixType >::SuperLU ( const MatrixType & matrix )

inlineexplicit

◆ ~SuperLU()

template<typename _MatrixType >

Eigen::SuperLU< _MatrixType >::~SuperLU ( )

inline

◆ SuperLU() [3/3]

template<typename _MatrixType >

Eigen::SuperLU< _MatrixType >::SuperLU ( SuperLU< _MatrixType > & )

inlineprivate

Member Function Documentation

◆ _solve_impl()

template<typename MatrixType >

template<typename Rhs , typename Dest >

void Eigen::SuperLU< MatrixType >::_solve_impl	(	const MatrixBase< Rhs > &	b,
		MatrixBase< Dest > &	dest
	)		const

◆ analyzePattern()

template<typename _MatrixType >

void Eigen::SuperLU< _MatrixType >::analyzePattern ( const MatrixType & matrix )

inline

Performs a symbolic decomposition on the sparcity of matrix.

This function is particularly useful when solving for several problems having the same structure.

See also: factorize()

◆ determinant()

template<typename MatrixType >

SuperLU< MatrixType >::Scalar Eigen::SuperLU< MatrixType >::determinant

◆ factorize()

template<typename MatrixType >

void Eigen::SuperLU< MatrixType >::factorize ( const MatrixType & matrix )

Performs a numeric decomposition of matrix

The given matrix must has the same sparcity than the matrix on which the symbolic decomposition has been performed.

See also: analyzePattern()

◆ init()

template<typename _MatrixType >

void Eigen::SuperLU< _MatrixType >::init ( )

inlineprotected

◆ matrixL()

template<typename _MatrixType >

const LMatrixType& Eigen::SuperLU< _MatrixType >::matrixL ( ) const

inline

◆ matrixU()

template<typename _MatrixType >

const UMatrixType& Eigen::SuperLU< _MatrixType >::matrixU ( ) const

inline

◆ permutationP()

template<typename _MatrixType >

const IntColVectorType& Eigen::SuperLU< _MatrixType >::permutationP ( ) const

inline

◆ permutationQ()

template<typename _MatrixType >

const IntRowVectorType& Eigen::SuperLU< _MatrixType >::permutationQ ( ) const

inline

Member Data Documentation

◆ m_analysisIsOk

template<typename _MatrixType >

int Eigen::SuperLUBase< _MatrixType, Derived >::m_analysisIsOk

protected

◆ m_extractedDataAreDirty

template<typename _MatrixType >

bool Eigen::SuperLUBase< _MatrixType, Derived >::m_extractedDataAreDirty

mutableprotected

◆ m_factorizationIsOk

template<typename _MatrixType >

int Eigen::SuperLUBase< _MatrixType, Derived >::m_factorizationIsOk

protected

◆ m_info

template<typename _MatrixType >

ComputationInfo Eigen::SuperLUBase< _MatrixType, Derived >::m_info

mutableprotected

◆ m_isInitialized

template<typename _MatrixType >

bool Eigen::SparseSolverBase< Derived >::m_isInitialized

mutableprotected

◆ m_l

template<typename _MatrixType >

LUMatrixType Eigen::SuperLUBase< _MatrixType, Derived >::m_l

mutableprotected

◆ m_matrix

template<typename _MatrixType >

LUMatrixType Eigen::SuperLUBase< _MatrixType, Derived >::m_matrix

mutableprotected

◆ m_p

template<typename _MatrixType >

IntColVectorType Eigen::SuperLUBase< _MatrixType, Derived >::m_p

mutableprotected

◆ m_q

template<typename _MatrixType >

IntRowVectorType Eigen::SuperLUBase< _MatrixType, Derived >::m_q

mutableprotected

◆ m_sluA

template<typename _MatrixType >

SluMatrix Eigen::SuperLUBase< _MatrixType, Derived >::m_sluA

mutableprotected

◆ m_sluB

template<typename _MatrixType >

SluMatrix Eigen::SuperLUBase< _MatrixType, Derived >::m_sluB

mutableprotected

◆ m_sluBerr

template<typename _MatrixType >

Matrix<RealScalar,Dynamic,1> Eigen::SuperLUBase< _MatrixType, Derived >::m_sluBerr

protected

◆ m_sluCscale

template<typename _MatrixType >

Matrix<RealScalar,Dynamic,1> Eigen::SuperLUBase< _MatrixType, Derived >::m_sluCscale

protected

◆ m_sluEqued

template<typename _MatrixType >

char Eigen::SuperLUBase< _MatrixType, Derived >::m_sluEqued

mutableprotected

◆ m_sluEtree

template<typename _MatrixType >

std::vector<int> Eigen::SuperLUBase< _MatrixType, Derived >::m_sluEtree

mutableprotected

◆ m_sluFerr

template<typename _MatrixType >

Matrix<RealScalar,Dynamic,1> Eigen::SuperLUBase< _MatrixType, Derived >::m_sluFerr

mutableprotected

◆ m_sluL

template<typename _MatrixType >

SuperMatrix Eigen::SuperLUBase< _MatrixType, Derived >::m_sluL

mutableprotected

◆ m_sluOptions

template<typename _MatrixType >

superlu_options_t Eigen::SuperLUBase< _MatrixType, Derived >::m_sluOptions

mutableprotected

◆ m_sluRscale

template<typename _MatrixType >

Matrix<RealScalar,Dynamic,1> Eigen::SuperLUBase< _MatrixType, Derived >::m_sluRscale

mutableprotected

◆ m_sluStat

template<typename _MatrixType >

SuperLUStat_t Eigen::SuperLUBase< _MatrixType, Derived >::m_sluStat

mutableprotected

◆ m_sluU

template<typename _MatrixType >

SuperMatrix Eigen::SuperLUBase< _MatrixType, Derived >::m_sluU

protected

◆ m_sluX

template<typename _MatrixType >

SluMatrix Eigen::SuperLUBase< _MatrixType, Derived >::m_sluX

protected

◆ m_u

template<typename _MatrixType >

LUMatrixType Eigen::SuperLUBase< _MatrixType, Derived >::m_u

mutableprotected

The documentation for this class was generated from the following file:

/home/runner/work/NDDEM/NDDEM/src/CoarseGraining/Eigen/src/SuperLUSupport/SuperLUSupport.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

template<typename _MatrixType> class Eigen::SuperLU< _MatrixType >

Member Typedef Documentation

◆ Base

◆ IntColVectorType

◆ IntRowVectorType

◆ LMatrixType

◆ LUMatrixType

◆ MatrixType

◆ PermutationMap

◆ RealScalar

◆ Scalar

◆ StorageIndex

◆ UMatrixType

Constructor & Destructor Documentation

◆ SuperLU() [1/3]

◆ SuperLU() [2/3]

◆ ~SuperLU()

◆ SuperLU() [3/3]

Member Function Documentation

◆ _solve_impl()

◆ analyzePattern()

◆ determinant()

◆ factorize()

◆ init()

◆ matrixL()

◆ matrixU()

◆ permutationP()

◆ permutationQ()

Member Data Documentation

◆ m_analysisIsOk

◆ m_extractedDataAreDirty

◆ m_factorizationIsOk

◆ m_info

◆ m_isInitialized

◆ m_l

◆ m_matrix

◆ m_p

◆ m_q

◆ m_sluA

◆ m_sluB

◆ m_sluBerr

◆ m_sluCscale

◆ m_sluEqued

◆ m_sluEtree

◆ m_sluFerr

◆ m_sluL

◆ m_sluOptions

◆ m_sluRscale

◆ m_sluStat

◆ m_sluU

◆ m_sluX

◆ m_u

template<typename _MatrixType>
class Eigen::SuperLU< _MatrixType >
