Expression of a non-sequential sub-matrix defined by arbitrary sequences of row and column indices. More...

#include <IndexedView.h>

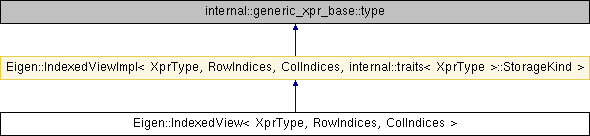

Inheritance diagram for Eigen::IndexedView< XprType, RowIndices, ColIndices >:

Public Types
typedef IndexedViewImpl< XprType, RowIndices, ColIndices, typename internal::traits< XprType >::StorageKind >::Base	Base

typedef internal::ref_selector< XprType >::non_const_type	MatrixTypeNested

typedef internal::remove_all< XprType >::type	NestedExpression

Public Types inherited from Eigen::IndexedViewImpl< XprType, RowIndices, ColIndices, internal::traits< XprType >::StorageKind >
typedef internal::generic_xpr_base< IndexedView< XprType, RowIndices, ColIndices > >::type	Base

Public Member Functions
template<typename T0 , typename T1 >
	IndexedView (XprType &xpr, const T0 &rowIndices, const T1 &colIndices)

Index	rows () const

Index	cols () const

const internal::remove_all< XprType >::type &	nestedExpression () const

internal::remove_reference< XprType >::type &	nestedExpression ()

const RowIndices &	rowIndices () const

const ColIndices &	colIndices () const

Protected Attributes
MatrixTypeNested	m_xpr

RowIndices	m_rowIndices

ColIndices	m_colIndices

Detailed Description

template<typename XprType, typename RowIndices, typename ColIndices>
class Eigen::IndexedView< XprType, RowIndices, ColIndices >

Expression of a non-sequential sub-matrix defined by arbitrary sequences of row and column indices.

Template Parameters

XprType	the type of the expression in which we are taking the intersections of sub-rows and sub-columns
RowIndices	the type of the object defining the sequence of row indices
ColIndices	the type of the object defining the sequence of column indices

This class represents an expression of a sub-matrix (or sub-vector) defined as the intersection of sub-sets of rows and columns, that are themself defined by generic sequences of row indices $\{r_0,r_1,..r_{m-1}\}$ and column indices $\{c_0,c_1,..c_{n-1} \}$ . Let $ A $ be the nested matrix, then the resulting matrix $ B $ has m rows and n columns, and its entries are given by: $ B(i,j) = A(r_i,c_j) $ .

The RowIndices and ColIndices types must be compatible with the following API:

<integral type> operator[](Index) const;

Index size() const;

Eigen::internal::size

EIGEN_CONSTEXPR Index size(const T &x)

Definition: Meta.h:479

Eigen::Index

EIGEN_DEFAULT_DENSE_INDEX_TYPE Index

The Index type as used for the API.

Definition: Meta.h:74

cereal::bitset_detail::type

type

The type the bitset is encoded with.

Definition: bitset.hpp:44

Typical supported types thus include:

std::vector<int>
std::valarray<int>
std::array<int>
Plain C arrays: int[N]
Eigen::ArrayXi
decltype(ArrayXi::LinSpaced(...))
Any view/expressions of the previous types
Eigen::ArithmeticSequence
Eigen::internal::AllRange (helper for Eigen::all)
Eigen::internal::SingleRange (helper for single index)
etc.

In typical usages of Eigen, this class should never be used directly. It is the return type of DenseBase::operator()(const RowIndices&, const ColIndices&).

See also: class Block
